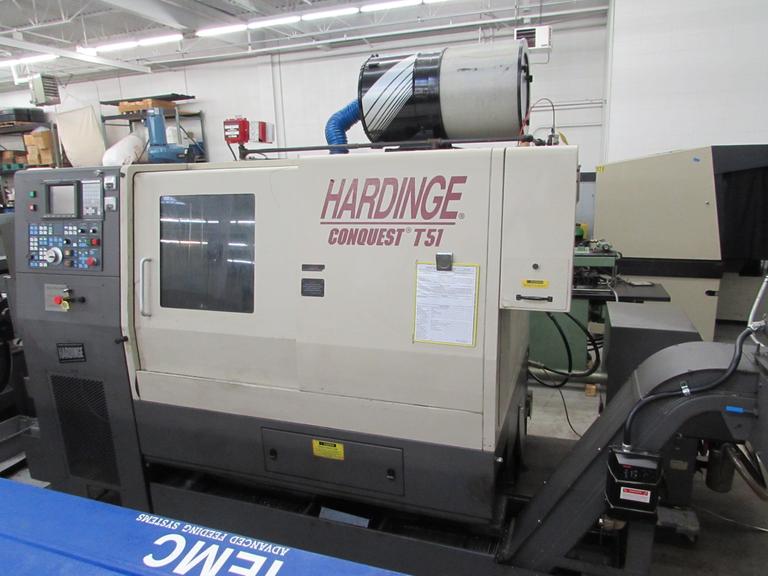

Hardinge Conquest T51 CNC Turning Center w Live Milling, Sub-Spindle, High Pressure Coolant, Spego Bar Feed
Control: Ge Fanuc Series 18T CNC Control
Spindle Nose: A2-6"
Main Spindle Chuck Size: 8" Capacity
Main Bar Capacity: 2.5" Big Bore Spindle
Max Swing Over Bed: 26"
Max Turning Diameter: 10.43"
Max Distance Between Spindles: 22"
Main Spindle Speeds : 50 - 4,200 RPM
Main Spindle Orientation: Full C-Axis Programmable (.001 Degrees)
Turret Capacity: 10 Stations (5 Live Milling Capable)
Rapids: 630 IPM
Turret Travels (X/Z): 6.75" x 22.875"
Live Tool Speeds: 3,000 RPM Max Speed
Sub-Spindle Orientation: None
Main Spindle Drive: 20 HP
Sub-Spindle Drive : 7.5 HP
GE Fanuc 18T CNC Control, 2.5" Bar Big-Bore Option, 10 Station Turet with 5 Live Milling Stations, Full C-Acis Programmable Main Spindle, Hardinge 25C Collet On Main Spindle, 8" AutoBlock Chuck, Sub-Spindle, Parts Catcher, Turbo Chip Conveyor, Jet Pulser High Pressure Coolant Unit, Spego Turnamic 506 Hydraulic Bar Feed (s/n: 98-5-196), FilterMist Mist Collector, Transfomer for 480/230 Volt, Assorted Tooling with (5) Live Milling Tool Holders, RS232 Port, Fire Suppression System, Machine Manuals
GE Fanuc 18T CNC Control, 2.5" Bar Big-Bore Option, 10 Station Turet with 5 Live Milling Stations, Full C-Acis Programmable Main Spindle, Hardinge 25C Collet On Main Spindle, 8" AutoBlock Chuck, Sub-Spindle, Parts Catcher, Turbo Chip Conveyor, Jet Pulser High Pressure Coolant Unit, Spego Turnamic 506 Hydraulic Bar Feed (s/n: 98-5-196), FilterMist Mist Collector, Transfomer for 480/230 Volt, Assorted Tooling with (5) Live Milling Tool Holders, RS232 Port, Fire Suppression System, Machine Manuals
230 Volt, 3 Phase
