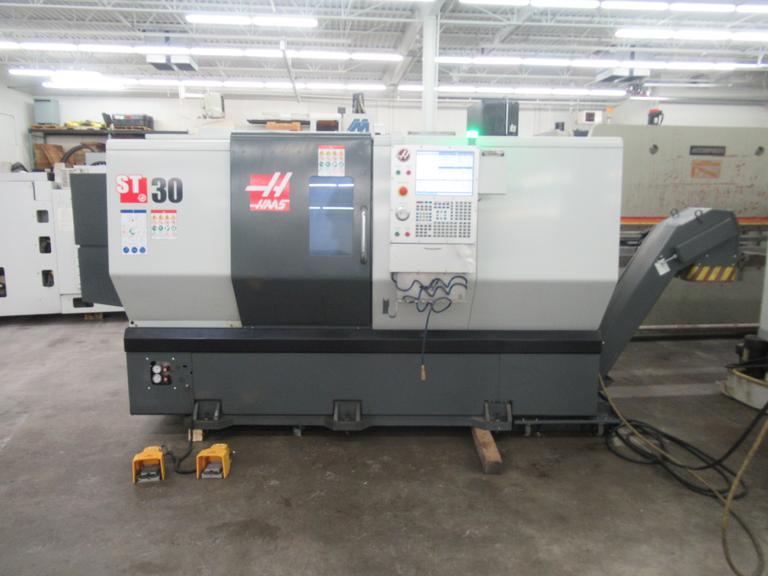

Haas ST-30 2-Axis CNC Turning Center with 12" 3-Jaw Chuck, Tool Presetter, Programmable Tailstock, and Chip Conveyor.
Control: Haas Next Generation CNC Control
Max Swing Over Bed: 31.75"
Max Swng Over Saddle: 20.75"
Max Turning Diameter: 21"
Max Turning Length: 26"
Distance Spindle Nose to Turret: 32"
Spindle Speeds: 0 - 3,400 RPM
Spindle Drive: 30 HP Vector Spindle Drive
Spindle Nose: A2-6
Hole Thru Spindle: 3.5"
Hole Thru Draw Tube: 3.0" Bar Capacity
Turret Capacity: 12 Stations
Rapid Traverse Rate (X/Z): 945 IPM
Turret Travels (X,Z): 12.5" x 26"
Tailstock Travel: Programmable
Tailstock?: Yes
Tailstock Quill Travel: 21" Tailstock Travel
Max Bar Capacity: 3.0"
Haas Next Generation CNC Control, LMC 12" 3-Jaw Hydraulic Chuck Upgrade, 12 Station Bolt-On Turret, Automatic Tool Presetter, Programmable Tailstock, Rigid Tapping, USB Port, Ethernet Port, Early Power Faliure Detection, Visual Programming System, Haas Connect Option, 1GB Memory, Chip Conveyor, Foot Pedal Trips, Coolant System and Tank. Turret Wedge Clamps and (2) Boring Holders Included.
Haas Next Generation CNC Control, LMC 12" 3-Jaw Hydraulic Chuck Upgrade, 12 Station Bolt-On Turret, Automatic Tool Presetter, Programmable Tailstock, Rigid Tapping, USB Port, Ethernet Port, Early Power Faliure Detection, Visual Programming System, Haas Connect Option, 1GB Memory, Chip Conveyor, Foot Pedal Trips, Coolant System and Tank. Turret Wedge Clamps and (2) Boring Holders Included.
220 volt 3 phase
