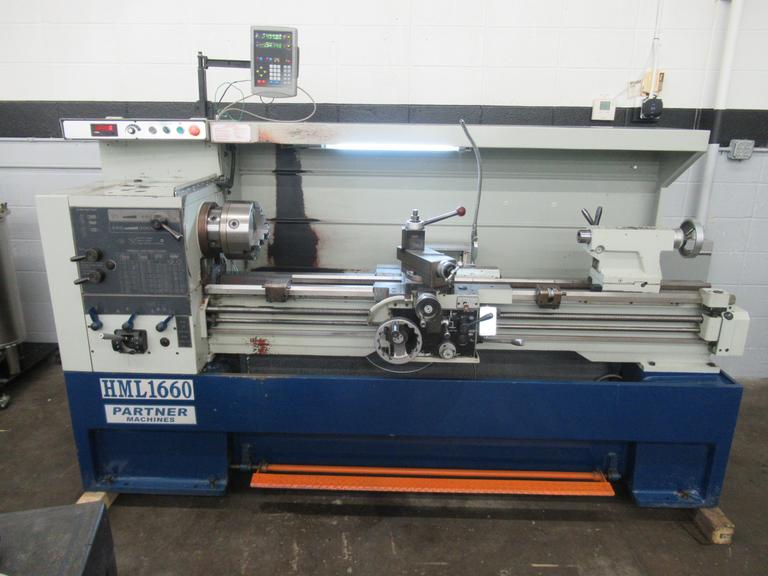

Milltronics Partner HML1660 16" x 60" Engine Lathe with Newall 2-Axis Digital Readout, 3-Jaw Chuck, Collet Chuck, Tailstock, and more.
Max Swing Over Ways: 16"
Max Swing Over Cross Slide: 10-1/2"
Swing In Gap: 20.9"
Max Center Distance: 60"
Hole Thru Spindle: 2.06"
Spindle Mount: D1-6 Camlock
Max Cross Slide Travel: 8.6"
Max Compound Travel: 5.5"
Spindle Speeds: Variable Speed in Two Ranges 25-480 RPM and 480-3000 RPM
Feed Rates: .0015 - .04 IPR Sliding Feed / .00075 - .02 IPR Surfacing Feed
Tailstock Quill Travel: 6"
Tailstock Quill Taper: #4MT
Threading Capacities: Inch & Metric Threading
Drive Motor: 5 HP
16" Swing by 60" Centers, Newall C80 2-Axis Digital Readout, 8" 3-Jaw Chuck, 5C Collet Chuck, Quick Change Tool Post, Tailstock, Variable Speed Spindle with Digital Readout in Two Ranges 25-480 RPM and 480-3000 RPM, Inch and Metric Threading, Steady Rest, Follow Rest, Micrometer Carriage Stop, Oil Mister Unit, In-Base Coolant Pump, Spindle Break, Chip Pan, Machine Manuals.
220 Volt 3 Phase
