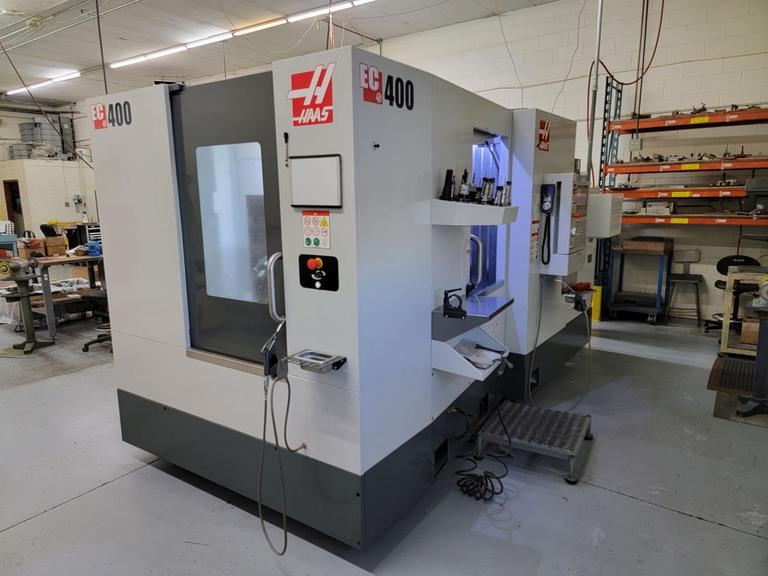

Haas EC-400 CNC 4-Axis Horizontal Machining Center with (2) Station Pallet Changer, 15,000 RPM Spindle, Full 4th Axis, 1000 PSI Through Spindle Coolant, High Speed Machining, and Probing.

Haas EC-400 CNC 4-Axis Horizontal Machining Center with (2) Station Pallet Changer, 15,000 RPM Spindle, Full 4th Axis, 1000 PSI Through Spindle Coolant, High Speed Machining, and Probing.

Stock: 6978Manufacturer: Haas Model: EC-400Age: 2020

CNC Control: Haas Next Gen CNC Control

Pallet Size: 15.75" x 15.75"

Machine Travels (X/Y/Z): 22" x 25" x 22"

Pallet Indexing: Full 4th Axis, 0.001° Resolution

Max Pallet Load: 880 LBS

Pallet Change Time: 15 Seconds

Rapid Traverse Rate (X/Y/Z): 1400 IPM

Max Cutting Feed Rate: 833 IPM

Spindle Taper: Cat 40 Taper

Spindle Speeds: 0-15,000 RPM Inline Direct Drive Spindle

Toolchanger Capacity: 30 Station Twin-Arm Tool Changer

Max Tool Weight: 12 lb.

Max Tool Length/Diameter: 12" / 5"

Tool to Tool Time: 2.8 Sec Tool To Tool (Average)

Spindle Drive: 30 HP

Tabletop to Spindle Center: 2.1" - 22.1"

Spindle Gauge Line to Table Center: 3.9" - 23.9"

Number of Pallets: 2

VIDEOS

Description:

The Haas EC-400 is a horizontal machining center manufactured by Haas Automation, a well-known American company specializing in machine tools and CNC (Computer Numerical Control) equipment. The EC-400 is designed for precision machining of a wide range of materials, and it offers several features and capabilities.The EC-400 is a horizontal machining center, which means that it performs machining operations with the workpiece positioned horizontally. This configuration is ideal for applications where chips and coolant can be efficiently evacuated. This machine features a large work envelope, providing ample space for workpieces and fixtures. Like many machining centers, this EC-400 includes an automatic tool changer (ATC). This allows for the efficient and automatic swapping of cutting tools during the machining process, reducing downtime.

Equipped With:

Haas Next Gen CNC Control, (2) Station Pallet Changer with Pallets, CAT-40 Taper 15,000 RPM 30 HP Spindle, Full 4th Axis on Pallet, 30 Station Twin-Arm Tool Changer, 1000 PSI Through Spindle Coolant, High Speed Machining Option, Auxiliary Coolant Filter, High Pressure Flood Coolant, 1GB Memory, Chip Tray Filter Kit, Ethernet Port, USB Port, Remote Jog Handwheel with Touch Screen, Rotary Scales, Rigid Tapping, Through Tool Air Blast, Haas Wifi Connect, Media Display M-Code, Renishaw Tool and Parts Probe System, Second Home Position, CNC Cabinet Cooler, Work Table Light, Chip Conveyor, Complete Coolant System.

Electrics:

220 Volt 3 Phase
