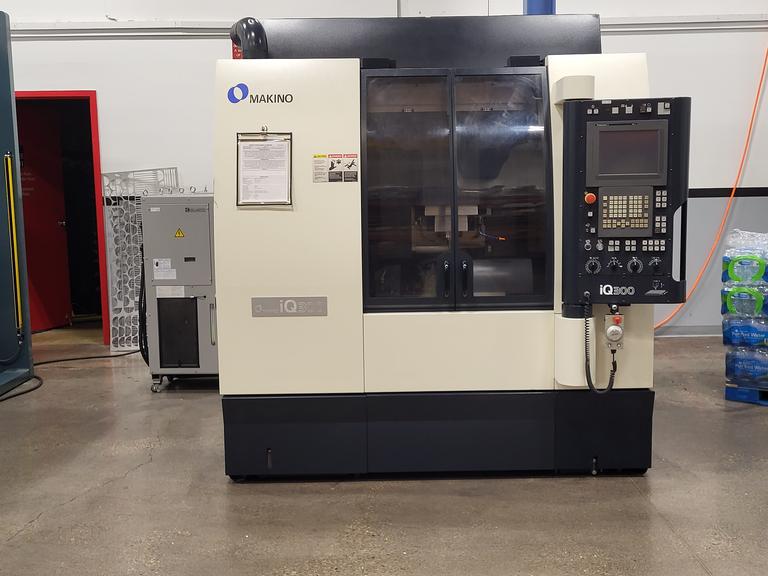

Makino iQ300 CNC Vertical Machining Center, 45,000 RPM Spindle, Linear Drives, Hale Machining, 4th Axis Direct Drive Rotary, Probing - Super Accuracy - Installed 2019
Machine Control: Makino Professional 5 Control
Table Size: 23.6" x 15.7"
Machine Travels (X/Y/Z): 15.7"/13.78"/7.87"
Spindle To Table Distance: 3.94" to 11.8"
Table Capacity: 220 LBS.
Spindle Taper: HSK-E32
Spindle Speeds: 400 - 45,000 RPM
Rapid Traverse Rate (X/Y/Z): X 630 IPM / Y 630 IPM / Z 315 IPM
Maximum Cutting Feed Rate: X 630 IPM / Y 630 IPM / Z 315 IPM
Tool Changer Capacity: 20 Stations
Tool Change Time: 8 Seconds
Max Tool Length: 23.6"
Max Tool weight: 1.1 LBS
Spindle Drive: 12.7 HP
Makino Professional 5 Control, Makino RWH 4th Axis Direct Drive Rotary, Super GI.4 Control with Enhanced SGI.4 Capability, Renishaw OMP100 AMS Probe System, Hale Machining, 20 Tool ATC, 45,000 RPM Spindle, Coolant Temperature Controller (with Heater), Automatic Spindle Lubricant Temperature Control, HSK-E32 Spindle, Linear Motor X,Y & X Axes, Scale Feedback, Thermal Guard, Lubrication, Nozzle Coolant, Splash and Chip Shield, LED Lighting Device Inside Splash Guard, Hybrid Automatic Tool Length Measuring Device, Portable Manual Pulse Generator, Helical Interpolation 2+2 Axes, Rigid Tapping, Programmable Data Input, Tilted Working Plane Command, Increased Storage 8mb & 1000 Registered Programs, Mist Collector, Smoke Eater Air Filtration, Transformer, Assorted Shell Oil, Spindle Lubricant - New and Unused. with Manuals
Makino Professional 5 Control, Makino RWH 4th Axis Direct Drive Rotary, Super GI.4 Control with Enhanced SGI.4 Capability, Renishaw OMP100 AMS Probe System, Hale Machining, 20 Tool ATC, 45,000 RPM Spindle, Coolant Temperature Controller (with Heater), Automatic Spindle Lubricant Temperature Control, HSK-E32 Spindle, Linear Motor X,Y & X Axes, Scale Feedback, Thermal Guard, Lubrication, Nozzle Coolant, Splash and Chip Shield, LED Lighting Device Inside Splash Guard, Hybrid Automatic Tool Length Measuring Device, Portable Manual Pulse Generator, Helical Interpolation 2+2 Axes, Rigid Tapping, Programmable Data Input, Tilted Working Plane Command, Increased Storage 8mb & 1000 Registered Programs, Mist Collector, Smoke Eater Air Filtration, Transformer, Assorted Shell Oil-New and Unused, Spindle Lubricant-New and Unused. with Manuals
