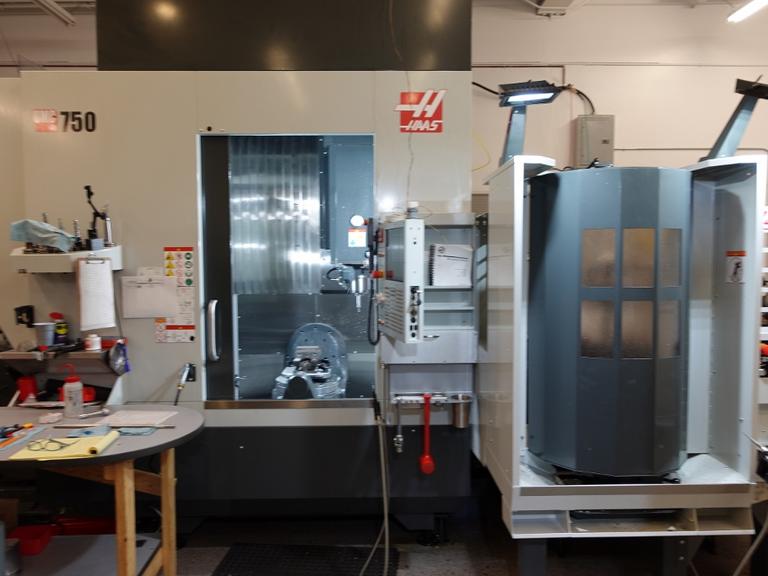

Haas UMC-750 CNC 5-axis Vertical Machining Center, 11 Station Pallet Pool, 15,000 RPM, Probing, Through Spindle Coolant
Control: Haas Next Generation CNC Control with Dynamic Work offset & Tool Center Point Controls
Rapid Traverse X/Y/Z: 1,200 IPM
Machine Travels: 30" x 20" x 20"
5-Axis Table Style: Integrated Trunnion Table
Table Size: 19.7" Platter Diameter (11) 15.75" x 11.75" Pallets
Spindle Nose to Table Distance: 4" - 24"
B-Axis Tilt Travel: 120 Degree to -35 Degree
B-Axis Max Speed: 50 Degrees Per Second
C-axis Rotation Travel: 360 Degrees
C-Axis Rotation Max Speed: 50 Degrees Per Second
Spindle Taper: Cat 40
Spindle Speeds: 15,000 RPM Max Spindle Speed
Spindle Drive: 30 HP In-Line Direct Spindle Drive
Tool Changer Capacity: 50+1 Station Twin-Arm Automatic Tool Changer
Tool Change Time: 2.8 Seconds Tool to Tool
Max Pallet Wieght Capacity: 200 Lb's Per Pallet
Haas Next Generation CNC Control, Built-In 5-Axis Trunnion Table, Dynamic Work Offset & Tool Center Point Control, 15,000 RPM Max Spindle Speed, 50 Station Twin-Arm Automatic Tool Changer, Pallet Changer with 10 Pallet Stations and (1) Load / Unload Station with (11) 15.75" x 11.75" Pallets, 300 PSI Through Spindle Coolant, Haas Probing System with Renishaw OTS Tool Probe and Renishaw Parts Probe, CT 40 Spindle Taper, Wireless Remote Jog Handwheel with Touchscreen, Ethernet, Hennig Belt Type Chip Conveyor, Haas Connect, High Speed Machining, Programmable Coolant Nozzle, Rotary B and C Axes Feedback Scales, Through Tool air Blast, Top Cover, 1GB Memory, 95 Gallon Coolant Tank, Second Home Position, Rigid Tapping,
220 Volt, 3 Phase 70 FLA
