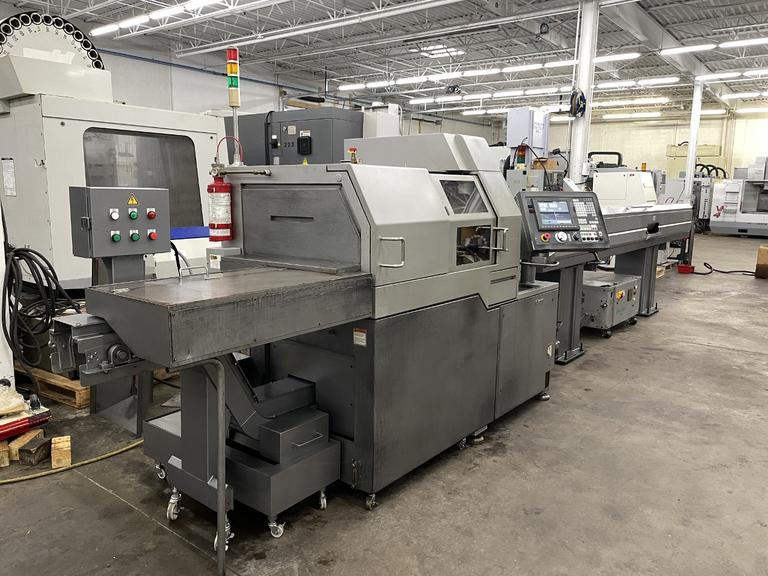

Citizen L20 Type VIII CNC Swiss Machine With CAV20L Barfeed, Chip Conveyors, High Pressure Coolant
Control: Citizen Mitsubishi Control
Maximum Machining Diameter: 20mm
Maximum Machining Length: 200mm
Main Spindle Speeds: 10,000 RPM
Back Spindle Speeds: 8,000 RPM
Main Spindle Indexing: Full C-Axis
Rotary Tool Speeds: 4,500 RPM
Back Spindle Max Chucking Diameter: 20mm
Sub-Spindle Indexing: Full C-Axis
Turning Tools: 5 Static Turning Tools
Rotary (Live) Tools: (4) Live ON Main Slide, (3) Type VIII Indexable Tool Station, (2) Back Endworking
Front Endworking Tools: 3
Back Endworking Tools: 3(2 Driven Live)
Rapid Traverse (X/Y/Z): 32m/min
Main Spindle Drive: 2.2/3.7 kW
Back Spindle Drive: .75/1.5 kW
Rotary Tool Drive: 1 kw
Cutting Tool Shank/Sleeve Size: 1/2"
Chip Conveyor, Long Parts Attachment, CAV20L-IS Barfeed, C-Axis Programmable Main/Sub, 10 Port Coolblaster CB510 2000PSI High Pressure System, 5 Gang Stations on Main, Programmable Knockout, 4 Live Main Stations, 3 Indexable Live on Main(Type VIII), 3 Frontworking Static, 3 End working Sub tools (2 are Live Capable), Fire Suppression System, Machine Manuals
208V 3 Phase
