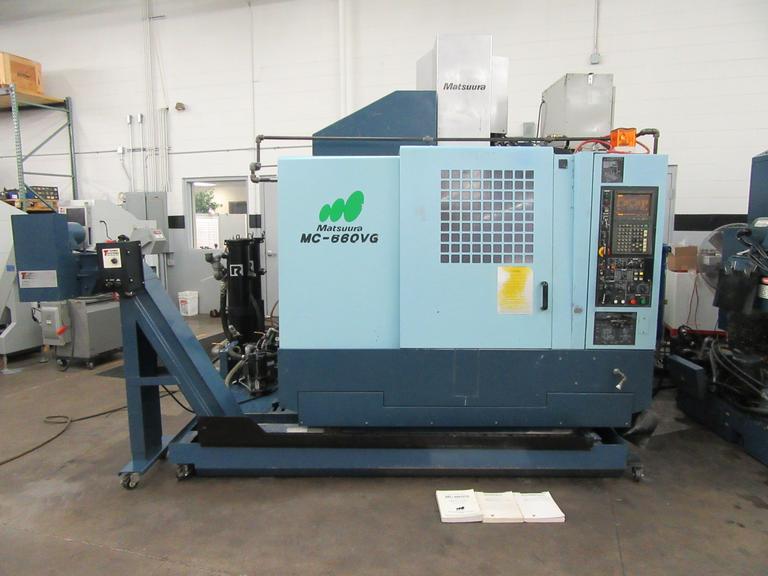

Matsuura MC-660VG 5-Axis CNC Vertical Machining Center with Tsudakoma Dual Trunnion Programmable Rotary Table
Machine Control: Yasnac J300 CNC Control
Table Size: 37" x 18.11"
Machine Travels (X/Y/Z): 26" x 18.11" x 19.09"
Table Capacity: 880 Lbs.
Spindle Taper: Cat 40
Spindle Speeds: 15,000 Max RPM
Rapid Traverse Rate (X/Y/Z): 1,575 / 1,575 / 1,181 IPM
Maximum Cutting Feed Rate: .1- 590.6 IPM
Tool Changer Capacity: 30 Tool Capacity
Tool Changer Style: Twin Arm
Tool Change Time: .9 Seconds Tool-To-Tool
Max Tool Length: 11.81" or 13.7"
Max Tool weight: 17.6 Lbs or 22 Lbs
Spindle Drive: 10 / 20 HP Spindle Drive
Spindle To Table Distance: 5.9" - 25"
Spindle Center to Column Distance: 19.69"
Yasnac J300 CNC Control, IZ-1/50 High Speed Machining, 4th and 5th Axis Programmable, Tsudakoma 2-Axis Trunnion Rotary Table, 15,000 RPM Max Spindle Speed, 30 Station Automatic Tool Changer, Thru Spindle Coolant, High Pressure Coolant Pump, Chip Conveyor, Laser Broken Tool Detector, TriMist Mist Collector, Block Skip, tool Life Management, Manuals, Keys
220 Volt, 3 Phase
