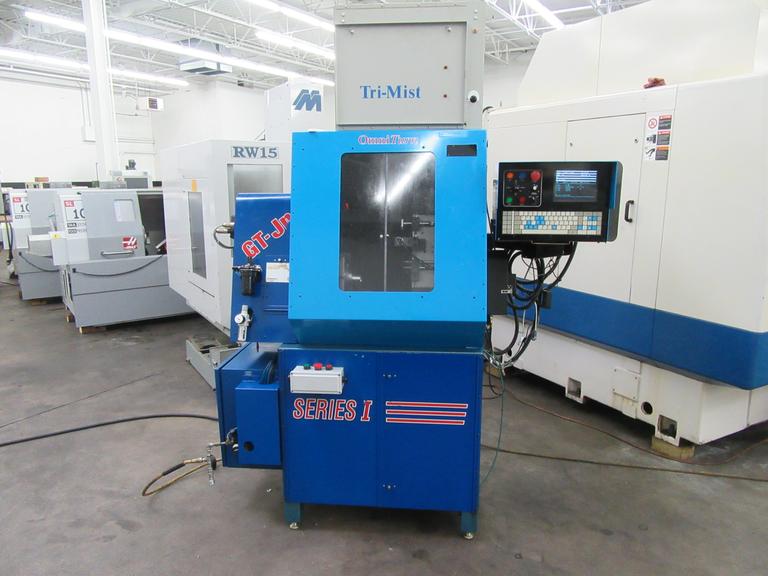

Omniturn GT Junior Series I CNC Turning Center, Gang Style with Live Milling and .1 Degree Spindle Indexing
Stock: 6405Manufacturer: Omniturn Model: GT JuniorAge: N/A
Machine Control: Omniturn CNC Control
Spindle Nose: 5C Collet Nose
Spindle Bore: 1-1/16" Collet Capacity
Spindle Speed: 100-4,000 RPM
X-Axis Travel: 12"
Z-Axis Travel: 9"
Spindle Drive: 4.5 HP
Gang Slide Table Size: 14" x 6"
Rapid Travrse Rate X / Z: 300 IPM
Draw Tube Bore: 1-1/16" Collet Capacity
Equipped With:
OmniTurn OT CNC Control, 5C Air Collet Closer, C-Axis (.1 Degree) Spindle Orientation, (1) 3 Station Endworking Tool Holder (2) NSK 30,000 RPM Pneumatic Live Milling Spindles, (1) OmniTurn LV-30 Live Holder, Coolant System in Base, TriMist Mist Collector, Manuals and Control Floppy Disk
Electrics:
220 Volt, 3 Phase
